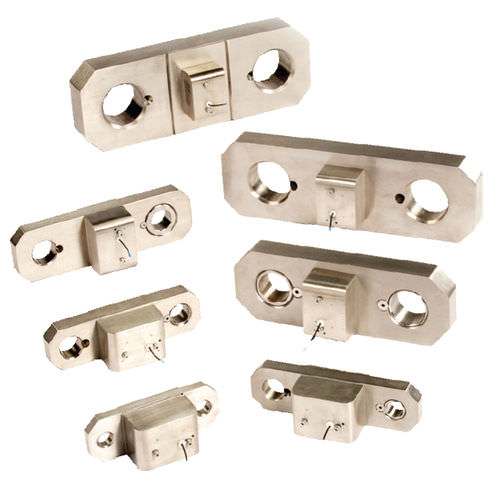

Tension load cell GS series

beam typestrain gaugecustom

Features: Standard single part line pull sizes include: 5,000 lb / 2.5 Tons 12,000 lb / 6 Tons 18,000 lb / 9 Tons 35,000 lb / 17.5 Tons 60,000 lb / 29.9 Tons 100,000 lb / 49.9 Tons 170,000 lb / 85 Tons 250,000 lb / 125 Tons 300,000 lb / 150 Tons 400,000 lb / 200 Tons 600,000 lb / 300 Tons Direct Sequence-Spread Spectrum-Two Way Communication Transmission Range: 4,000 feet (1,300 meters) Ships as standard with 1-"D" Cell lithium battery (2 years battery life) Users can replace lithium battery with "D" Cell alkaline battery if lithium replacement battery is unavailable when battery goes low (Alkaline battery life: 6 months to 1 year) Each load cell ships pre-calibrated, eliminating the need for test weights Each load cell is temperature compensated for increased accuracy For crane applications the load cell can be mounted above a ball, odd parted on the block or even parted at the boom tip Potted electronics for increased water proof protection Operating temperature: -40°F to +185°F (-40°C to +85°C) 2 year warranty against defects Accuracy of +/- 1% on a single part of line Custom sizes on request Each load cell is made as standard from 17-4 stainless steel External antenna increases transmission range as compared to internal antenna User replaceable antenna
