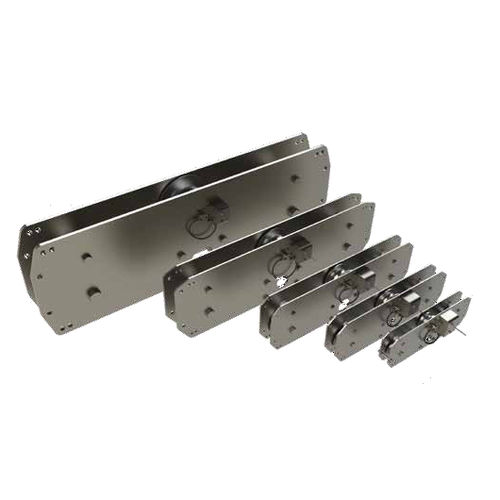

Wire tensiometer max. 250 000 kg

Wire tensiometer - max. 250 000 kg - Trimble
Wire tensiometer - max. 250 000 kg - Trimble
Wire tensiometer - max. 250 000 kg - Trimble - image - 2
Add to favorites
Compare this product


Characteristics

Applications
for wire

Description

Features: Ideal for marine/offshore applications, mooring line applications, barge cranes NEW Stainless Steel design protects against the corrosion and deterioration of traditional materials used in marine/offshore applications Available for wire rope sizes of 3/8" (9.5mm) to 4" (102mm) in diameter Rope payout/speed/direction option Rope payout accuracy: 1" (25.4mm) Load reading precision: +/- 3% of rope capacity Single line capacity up to 450,000lb (250,000kg) Eliminates hard wired cable breakage Eliminates need for amplifier Direct Sequence-Spread Spectrum-Two Way Communication Transmission Range: 4,000ft (1,300m) Ships as standard with 1 "D" Cell Lithium Battery, 1-2 years battery life Users can replace Lithium battery with "D" Cell Alkaline battery if Lithium replacement battery is unavailable when battery goes low (Battery life is 6 months to 1 year using Alkaline) Calibration data is stored inside the wireless transmitter Operating temperature: -40°F to +185°F; -40°C to +85°C Temperature compensated Potted electronics for increased water protection 2 year warranty against defects
