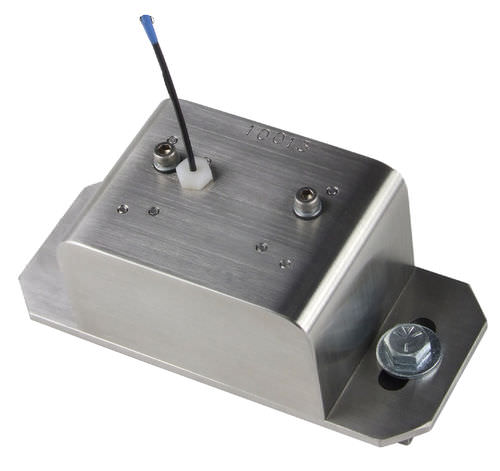

Angular position sensor GS010

SSImetal

Features: * No moving parts, uses electronic chip * Direct Sequence-Spread Spectrum-Two Way Communication * Transmission Range: 4,000 feet; 1,300 meters * Ships as standard with 1-"D" Cell lithium battery, 2-4 years battery life * Users can replace lithium battery with "D" Cell alkaline battery if lithium replacement battery is unavailable when battery goes low. Battery life is 6 months to 1 year using alkaline * Stainless steel housing * Easy calibration, bring boom to zero degrees, angle sensor has leveling light for zero degree calibration. No need to move boom to high angle for calibration * 3/10th's of a degree resolution * Potted electronics for increased water proof protection * Operating temperature: -30F to +180F; -35C to +85 * 2 year warranty against defects * Sensor can be left hand or right hand cab mounted, will automatically adjust for the side it is installed on * Ideal for monitoring: Main Boom, Luffing Jib, Live Mast, Barge List Angle, Custom Applications * Standard operating range is -130 degrees to + 90 degrees, barge list angle sensor with a range from -5 degrees to + 5 degrees * Can also be ordered as a 360 degree sensor
