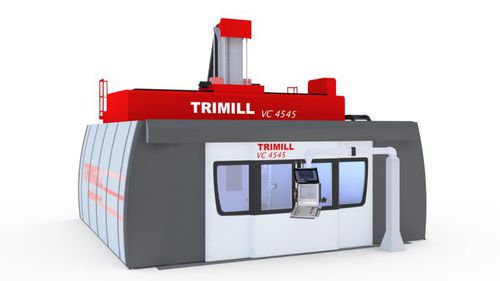

3-axis CNC milling machine VC 4545verticalgantry2-spindle
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Number of spindles
- 2-spindle
- Spindle mount
- HSK-A 100
- Applications
- for molds
- Other characteristics
- compact, rigid, high-productivity
- X travel
4,500 mm
(177.17 in)- Y travel
4,500 mm
(177.17 in)- Z travel
1,500 mm
(59.06 in)- Rotational speed
2,500 rpm, 14,000 rpm
(15,708 rad.min-1, 87,965 rad.min-1)- Power
32 kW, 40 kW, 52 kW, 70 kW
(43.51 hp, 54.38 hp, 70.7 hp, 95.17 hp)- Work feed X-axis
40,000 mm/min
(26 in/s)- Work feed Y-axis
40,000 mm/min
(26 in/s)- Work feed Z-axis
40,000 mm/min
(26 in/s)- Table load capacity
7,000 kg
(15,432 lb)- Weight
115,800 kg
(255,295.3 lb)
Description
Unique closed transverse (X-axis) and cross-support design with internally mounted quadruple-guided slide (Y- and Z-axis)
Constant machining results due to uniform thermosymmetric guidance
Rigidly fixed workpiece allows for high surface quality
Modifiable distance between spindle face and table clamping surface
Ergonomic layout – easy operation and access to working area
Convincing price/performance ratio
Optional spindle / head
Torque (S1/100%) [Nm] - 306
Torque (S6/40%) [Nm] - 390
Optional spindle / head
Torque (S1/100%) [Nm] - 1.000
Torque (S6/40%) [Nm] - 1.335
Other
Clamping surface [mm] - 5.000 x 4.800
Acceleration [m/s2] - 3
