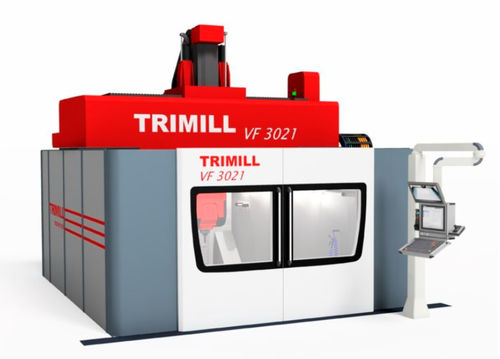

5-axis CNC milling machine VF 3021

verticalgantrywith fixed table

Unique closed crossbar (X-axis) and cross-support design with internally mounted slide and milling unit (Y- and -Z-axis) Constant machining results due to stable thermosymmetric guidance Rigidly fixed workpiece allows high surface quality Optional spindle face / clamping table surface distance Ergonomic layout – easy operation and access to working area Convincing price/performance ratio Optional spindle / head Type - T30C Torque (S1/100%) [Nm] - 248 Torque (S6/40%) [Nm] - 314 Spindle tilting [ - -110/+110 Head rotation [ - -360/+360 Reinforcement (tilting axes) [Nm] - 8.000 Reinforcement (pivot axes) [Nm] - 8.000 Positioning step [ - continuous Optional spindle / head Type - T30C CSC Torque (S1/100%) [Nm] - 251 Torque (S6/40%) [Nm] - 313 Spindle tilting [ - -110/+110 Head rotation [ - -360/+360 Reinforcement (tilting axes) [Nm] - 8.000 Reinforcement (pivot axes) [Nm] - 8.000 Positioning step [ - continuous Optional spindle / head Type - T21C Torque (S1/100%) [Nm] - 67 Torque (S6/40%) [Nm] - 84 Spindle tilting [ - -100/+100 Head rotation [ - -360/+360 Reinforcement (tilting axes) [Nm] - 4.000 Reinforcement (pivot axes) [Nm] - 4.000 Positioning step [ - continuous Optional spindle / head Type - T21C CSC Torque (S1/100%) [Nm] - 69 Torque (S6/40%) [Nm] - 91 Spindle tilting [ - -100/+100 Head rotation [ - -360/+360 Reinforcement (tilting axes) [Nm] - 4.000 Reinforcement (pivot axes) [Nm] - 4.000 Positioning step [ - continuous Optional spindle / head Type - U2C Torque (S1/100%) [Nm] - 1.000 Spindle tilting [ - -185/+185 Head rotation [ - -185/+185 Reinforcement (tilting axes) [Nm] - 3.000 Reinforcement (pivot axes) [Nm] - 6.500
