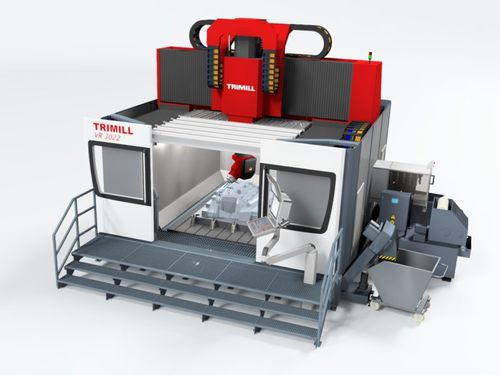

5-axis CNC milling machine VR 3022

verticalgantrywith fixed table

5-axis VR series TRIMILL gantry machines are specially developed for high-speed semi-finishing and finishing milling. The key technical parameters here are in particular the high feed rates (60,000 mm/min) and acceleration (5 m/s2), which are achieved by the use of linear motors and mass-optimised crossbeam. Machine includes cast-iron U-shaped base that can be anchored directly on a flat shop floor Stairs with walk-on metal platform for operator is positioned in front of the machine Cooling of all main components is part of standard configuration Upper gantry configuration for high accuracy 4 linear guideways in X axis, 2 in Y and Z axes Highly optimized welded structure of cross-beam and cross-support Stationary work piece for the highest surface qualities Optional spindle / head Type - T15C Torque (S1/100%) [Nm] - 67 / 96 Torque (S6/40%) [Nm] - 84 / 124 Spindle tilting [ - +/-115 Head rotation [ - +/-360 Reinforcement (tilting axes) [Nm] - 5.400 Reinforcement (pivot axes) [Nm] - 6.120 Positioning step [ - continuous Optional spindle / head Type - L1C Torque (S1/100%) [Nm] - 67 Torque (S6/40%) [Nm] - 87 Spindle tilting [ - +/-100 Head rotation [ - +/-270 Reinforcement (tilting axes) [Nm] - 2.000 Reinforcement (pivot axes) [Nm] - 4.000 Positioning step [ - continuous Other Clamping surface [mm] - 3.250 x 3.250 Acceleration [m/s2] - 6
