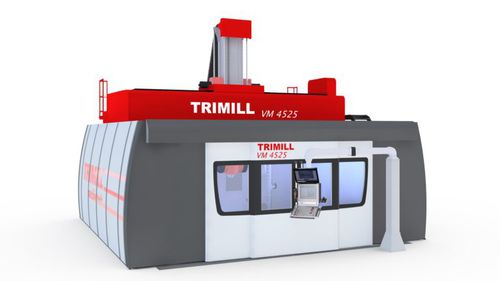

5-axis CNC milling machine VM 4525

verticalcompactrigid

Unique enclosed design of crossbar (X-axis) and cross-support with internally mounted slide and milling unit (Y- and Z-axis) Constant machining results due to stable thermosymmetric guidance Finishing and heavy roughing machining with interchangeable milling heads Ergonomic layout – easy operation and access to working area Convincing price/performance ratio Optional spindle / head Type - S1M Torque (S1/100%) [Nm] - 1.000 Torque (S6/40%) [Nm] - 1.337 Optional spindle / head Type - S2M Torque (S1/100%) [Nm] - 200 Torque (S6/40%) [Nm] - 264 Optional spindle / head Type - S3M Torque (S1/100%) [Nm] - 306 Torque (S6/40%) [Nm] - 390 Optional spindle / head Type - S4M Torque (S1/100%) [Nm] - 1.000 Optional spindle / head Type - F4M/F5M Torque (S1/100%) [Nm] - 350 Torque (S6/40%) [Nm] - 468 Spindle tilting [ - -50/+95 Head rotation [ - -240/+240 Reinforcement (tilting axes) [Nm] - 17.200 Reinforcement (pivot axes) [Nm] - 15.000 Positioning step [ - continuous/0,001 Optional spindle / head Type - U2M Torque (S1/100%) [Nm] - 1.000 Spindle tilting [ - -185/+185 Head rotation [ - -240/+240 Reinforcement (tilting axes) [Nm] - 3.000 Reinforcement (pivot axes) [Nm] - 15.000 Positioning step [ - 0,001 Optional spindle / head Type - H3M Torque (S1/100%) [Nm] - 1.000 Spindle tilting [ - -105/+105 Head rotation [ - -240/+240 Reinforcement (tilting axes) [Nm] - 6.000 Reinforcement (pivot axes) [Nm] - 15.000 Positioning step [ - continuous Optional spindle / head Type - T30M Torque (S1/100%) [Nm] - 248 Torque (S6/40%) [Nm] - 314 Spindle tilting [ - -110/+110 Head rotation [ - -240/+240 Reinforcement (tilting axes) [Nm] - 8.000
