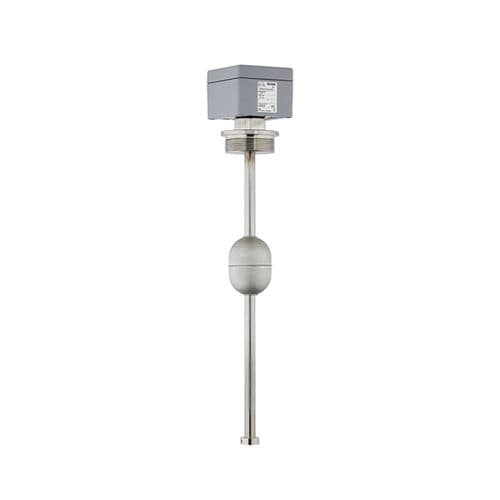

Float level transmitter USE 3000for liquids4-20 mA3-wire
Add to favorites
Compare this product
Characteristics
- Technology
- float
- Medium
- for liquids
- Interface
- 4-20 mA, 3-wire
- Applications
- for storage tanks
- Other characteristics
- stainless steel, IP67, IP65
- Level range
Max.: 3,000 m
(9842'06" )- Process pressure
Max.: 25 bar
(362.59 psi)Min.: 16 bar
(232.06 psi)- Process temperature
Max.: 150 °C
(302 °F)Min.: -10 °C
(14 °F)
Description
Level transmitter made from stainless steel, with housing, with a 4 – 20 mA output signal or 3-wire resistance signal.
Supply voltage
8…24 / 35 VDC
Output
4 – 20 mA or 3-wire resistance signal
Pressure
16/25 bar
Temperature
-10…90 / -50…150°C
Connecting Housing
Plug / cable / aluminium terminal box
Medium density
0,5g/cm³
Enclosure
IP65 or IP67
Accuracy
6,4mm (+/-)
Tube length L
3000 mm
Process connection
G2″ or DN65/PN16 flange
Catalogs
Data Sheet USE 3000
2 Pages
