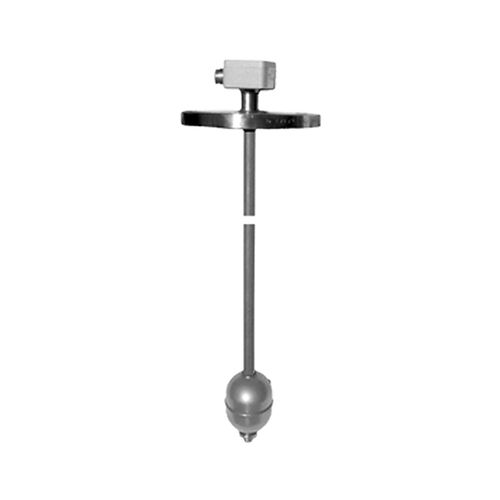

Float level transmitter USE 3200for liquids4-20 mA3-wire
Add to favorites
Compare this product
Characteristics
- Technology
- float
- Medium
- for liquids
- Interface
- 4-20 mA, 3-wire
- Applications
- for storage tanks
- Other characteristics
- stainless steel, IP65
- Level range
Max.: 3,000 m
(9842'06" )- Process pressure
Max.: 25 bar
(362.59 psi)Min.: 16 bar
(232.06 psi)- Process temperature
Max.: 100 °C
(212 °F)
Description
Transducer made from stainless steel, cable outlet with 3-wire resistance signal.
Supply voltage
8…24 VDC
Output
3-wire resistance signal
Pressure
16/25 bar
Temperature
T1…T4 to 100°C
T5….T6 to 60°C
Connecting Housing
Plug / cable / aluminium terminal box
Medium density
0,5g/cm³
Enclosure
IP65
Accuracy
6,4mm (+/-)
Tube length L
3000 mm
Process connection
G2″ or DN65/PN16 flange
Catalogs
Data Sheet USE 3200
2 Pages
