Magnetic float level switch UNS 2000for liquidsfor tankstainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float
- Medium
- for liquids
- Applications
- for tank
- Material
- stainless steel
- Mounting
- vertical
- Other characteristics
- IP65, IP54
- Process temperature
Max.: 150 °C
(302 °F)Min.: -40 °C
(-40 °F)- Process pressure
40 bar
(580.15 psi)
Description
The multi-level float switches of the UNS2000 series can be supplied with up to 6 switch points and with a length of up to 3000 mm.
Opener / Closer
250 V AC / DC, 3 A, 100 VA / W
Change-over switch
140 V AC, 100 V / DC, 1 A, 60 VA / W
Switch function
Opener / Closer / Change-over switch
Housing
Various
Enclosure
IP54 oder IP65
Temperature
-10…105°C / -40…150°C
Medium density
0.6 g/cm³ (brass) / 0.54 g/cm³ (stainless steel)
Pressure
40 bar
Mounting direction
Vertical, ± 30°
Tube length L
Max. 3000 mm
Process connection

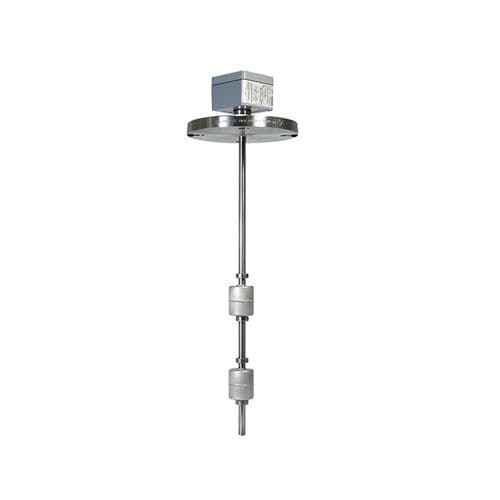

Various / In image: Flange DIN 2527, DN 65/PN16
Catalogs
Data Sheet UNS 2000
4 Pages
Data Sheet UNS 2000-S
2 Pages
