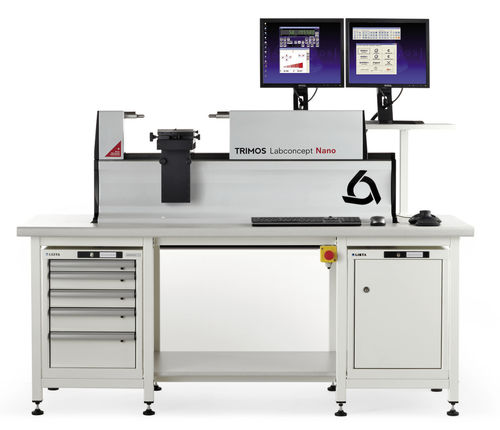

Length measuring device Labconcept Nano

calibrationhorizontalCNC

The Labconcept Nano is the latest edition in the world of positional metrology which incorporates about 40 years of expertise and consistent development to offer a perfect solution. This exceptional device can carry out all kinds of computation jobs requiring ultra high precision. Additionally, its uncompromising structure makes the Labconcept Nano a perfect solution for verifying and calibrating any type of gauge or computation devices. The verification of inner and outer positions are a completely automated process using three motorized axes XYZ along with the low-profile usage of the Trimos WinDHI software. The Labconcept Nano is engineered and produced in Switzerland while adhering to the maximum quality grades and provides ruggedness, dependability and durability. -Unequalled level of accuracy -Exceptional repeatability -Motorized CNC axes X, Y and Z -Measuring force from 0 to 12 N and blocking of measuring anvil performed by software -Integrated temperature compensation system -Absolute measuring range on all models: 350 mm -Application ranges: 350, 600 and 1100 mm -2 screens in standard package -CNC controlled measurement even on diamaters and threads
