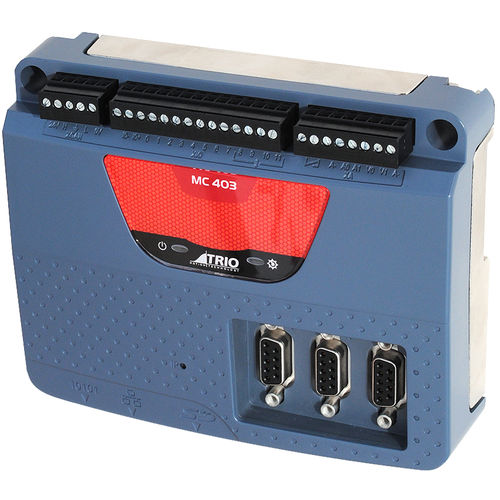

Multi-axis motion controller MC403, MC403-ZservomotorEthernetCANopen
Add to favorites
Compare this product
Characteristics
- Number of axes
- multi-axis
- Motor type
- servomotor
- Signal type
- Ethernet, CANopen, Modbus TCP
- Technology
- integrated
Description
The MC403 is a high specification Motion Coordinator using a high performance ARM11 processor, with three flexible axis ports and two Voltage outputs.
Advanced 2 Axis Closed Loop Servo / 3 Axis Pulse Direction
Linear, Circular, Helical and Spherical Interpolation
Flexible CAM shapes, Linked Motion
Biss, EnDAT and SSI Absolute Encoder Supported
Hardware Linked Outputs for Camera / Laser Control
Ethernet-IP / Modbus TCP / Ethernet Interface Built-In
125 – 2000 µsec Selectable Servo Update
Precise 64 bit Motion Calculations on ARM11 Processor with VFP
IEC 61131-3 Programming
Multi-tasking BASIC Programming
Text File Handling
Robotic Transformations
Micro SD Memory Card Slot
CANopen I/O Expansion
RoHS, UL Listed, CE approved
