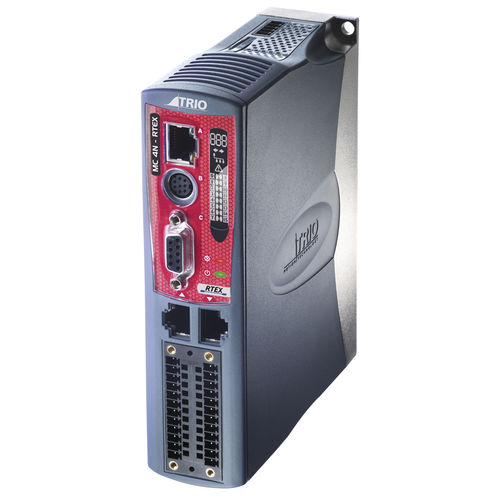

Multi-axis motion controller MC4N-RTEX

EthernetCANopenModbus TCP

The MC4N-RTEX extends the MC4N range of Motion Coordinators for networked drives which started with the MC4N-ECAT. It is dedicated to running remote servo drives via Panasonic's RTEX Real Time EXpress automation bus. It is based on an up-rated version of the 532MHz ARM processor with VFP3 and is available with configurations from 2 to 32 axes making it ideal for high axis count machines or robotic applications. Up to 32 RTEX Digital Drive Axes Supports Position, Speed and Torque Drive Modes Up to 1024 I/O Linear, Circular, Helical and Spherical Interpolation Flexible CAM shapes, Linked Motion Isolated Encoder Port Biss, EnDAT and SSI Absolute Encoder Supported Hardware Linked Output for Camera / Laser Control Ethernet-IP / Modbus TCP / Trio ActiveX / Uniplay HMI / UDP / Ethernet Interface Built-In Precise 64Bit Motion Calculations with 532MHz ARM 11 Processor IEC 61131-3 Programming Multi-tasking BASIC Programming Text File Handling Robotic Transformations 4 high speed registration inputs Isolated RS232 and RS485 ports SD Memory Card Slot CANopen I/O Expansion Backlit LCD Display RoHS and CE Approved
