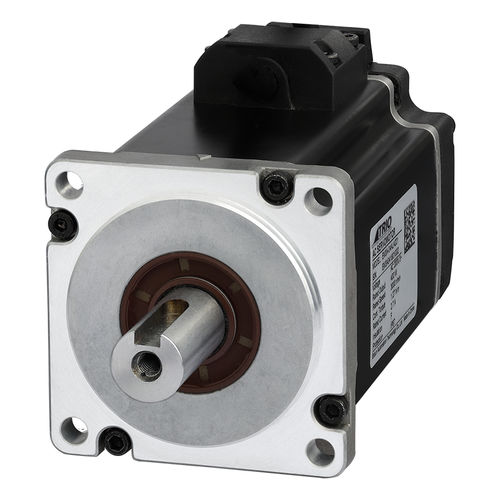

AC servomotor MXLasynchronousIP65with brake
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- asynchronous
- Protection class
- IP65
- Configuration
- with brake, compact, small
- Other characteristics
- high-speed, low-inertia
- Power
Max.: 1,000 W
(1.36 hp)Min.: 50 W
(0.068 hp)- Rotational speed
Max.: 3,000 rpm
(18,849.56 rad.min-1)Min.: 30 rpm
(188.5 rad.min-1)
Description
MXL Servo Motor Range
The MXL range of Low Inertia High Speed Servo Motors for the DX4 Servo Drive 50W - 1kW range.
The MXL family of servo motors include solutions with absolute or incremental encoders, are suitable for application speeds up to 6000 rpm, include variants with an integrated brake.
Low inertia allows very fast response times and these motors develop a very high torque despite their small size. In combination with our servo drives, they are ideal for applications with high dynamic responses and fast and precise positioning.
Our servo drive systems can be used in a wide range of applications thanks to their high performance, available power range and compact dimensions.
Highlights
• 20-bit incremental or 23-bit absolute encoder option
• IP65 rated
• Oil seal as standard
• Optional brake
