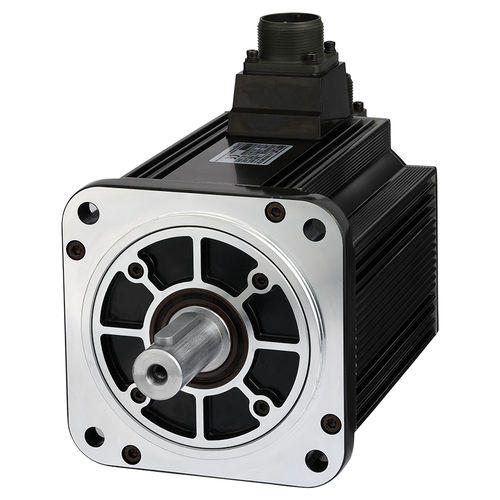

AC servomotor MXM
asynchronousIP65sealed

AC servomotor - MXM - Trio Motion Technology - asynchronous / IP65 / sealed
AC servomotor - MXM - Trio Motion Technology - asynchronous / IP65 / sealed
AC servomotor - MXM - Trio Motion Technology - asynchronous / IP65 / sealed - image - 2
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
asynchronous
Protection class
IP65, sealed
Configuration
with brake, compact, small
Other characteristics
medium-inertia, with built-in encoder
Power

1 kW, 1.5 kW, 2 kW, 3 kW
(1.36 hp, 2.039 hp, 2.719 hp, 4.079 hp)

Rotational speed

Min.: 20 rpm
(125.66 rad.min-1)

Max.: 2,000 rpm
(12,566.37 rad.min-1)

Description

MXM Servo Motor Range The MXM range of Medium Inertia Medium Speed Servo Motors for the DX4 Servo Drive 1kW - 3kW range. The MXM family of servo motors include solutions with absolute or incremental encoders, are suitable for application speeds up to 3000 rpm, include variants with an integrated brake. Medium inertia allows fast response times and these motors develop a very high torque despite their small size. In combination with our servo drives, they are ideal for applications with high dynamic responses and fast and precise positioning. Our servo drive systems can be used in a wide range of applications thanks to their high performance, available power range and compact dimensions. Highlights • 20-bit incremental or 23-bit absolute encoder option • IP65 rated • Oil seal as standard • Optional brake
