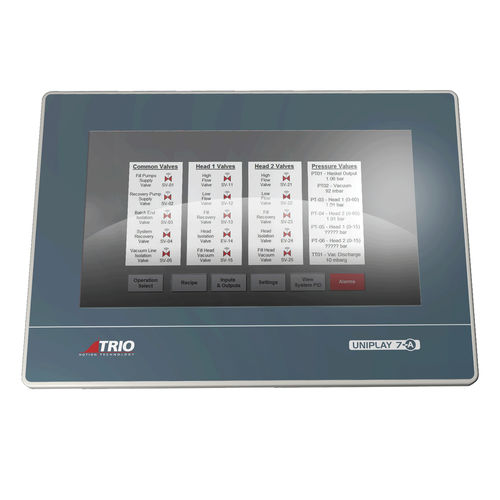

HMI terminal with touch screen UNIPLAY 7-A

handheld1024 x 600RISC

HMI P561 (7") Trio's unique UNIPLAY HMI system is a revolutionary way to make operator interfaces better, easier and more secure! The UNIPLAY series boasts a 7" colour display. Highlights • Single point HMI programming inside Motion Perfect • Centralised program / HMI screen storage in Motion Perfect project • Easily display any controller data type + graphics • No need to separately program HMI panel • 7" UNIPLAY sealed touch panel • Connect up to 2 HMI's to your Motion Coordinator • Ethernet connection reduces wiring Plug and Play The UNIPLAY range has built-in power isolation technology making it more reliable in noisy environments. No additional software is required; UNIPLAY HMI's work with the Trio 4xx and above Motion Coordinator range. Motion Perfect is used to create operator HMI screens which are transferred to the UNIPLAY HMI by the Motion Coordinator at runtime. UNIPLAY 7-A Part Number : P561 Processor : 32bit RISC CPU 600MHz Display Size : 7" TFT LCD Brightness : 450 cd/m2 Colours : 24-Bit Contrast Ratio : 500:1 Resolution : 1024 x 600 Ethernet Port : 1 x 10/100 Base-T Memory : Flash Storage: 128MByte RAM: 128Mbyte Power : 24Vd.c.+-20% Max Power Consumption : ~300mA@24Vd.c. Module Size (H x W x D) : 200 x 145 x 34mm Weight : 0.56kg Panel Cut-out Dimensions : 192 x 138mm CE marked for EMC : Yes RoHS : Compliant
