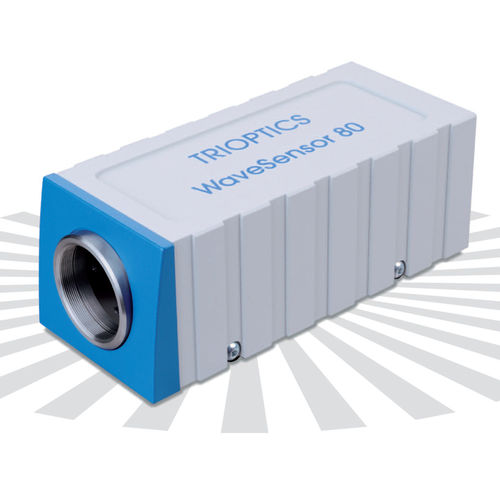

Wavefront sensor WaveSensor®

WaveSensor® is the Shack-Hartmann sensor developed by TRIOPTICS providing real time wavefront measurement and analysis of spherical and aspherical optics. Key Features Maximum dynamic range up to 2000 λ and accuracy up to < λ /20 (depending on model) Lenses up to diameter 15 mm (without additional optics) Surface topography measurement up to 7° deviation from the sphere (with optional reflex module) Compact and robust design Flexible wavefront measurement in the laboratory and in production Integration into existing laboratory or production facilities Communicates WaveMaster® software via CameraLink or IEEE 1394b Sensor configuration Applications Range of applications of Shack-Hartmann sensors Measurement of the wavefront (PV, RMS) Determination of the Zernike coefficients Measurement of the Point Spread Function (PSF) Measurement of the Modulation Transfer Function (MTF) Measurement of the Strehl ratio Wedge angle
