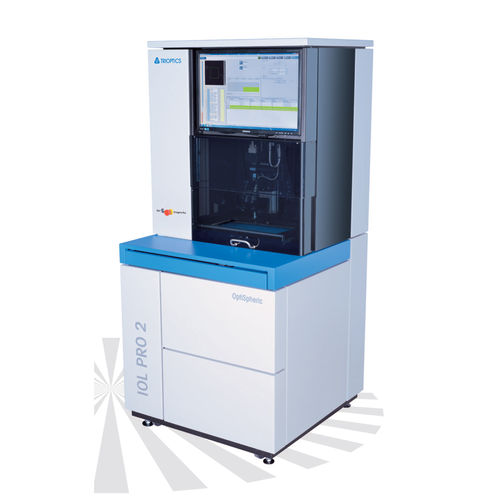

Test station for the optical industry OptiSpheric® IOL PRO 2

OptiSpheric® IOL PRO 2 is a fully automated optical test station designed and optimized for use in production. All measurements are done in compliance with the ISO 11979 standard, for all types of IOLs: monofocal, multifocal (diffractive, refractive), trifocal, toric, aspheric. Key Features High throughput batch measurement with up to 100 lenses per batch Motorized model cornea for automated testing with up to three different corneas Aperture changer with multiple aperture sizes Automated objective changer Measurement of toric lenses independent of the orientation Hydrophobic and hydrophilic measurements in air or in situ in model eye tray according to ISO 11979 Traceability to international standards NPL and NIST Stand-alone instrument with small foot print (90x90 cm) including all accessories and the computer Flexible software with easy production mode or advanced users script programming Applications Measuring Power, Add Power, Cylinder Measuring effective focal length (EFL) Measuring modulation transfer function (MTF) Measuring point spread function (PSF) Measuring cylinder axis, orthogonality and toric marks recognition Measuring radius of curvature Measuring back focal length (BFL) Through focus scans Relative transmission Energy distribution and Strehl ratio
