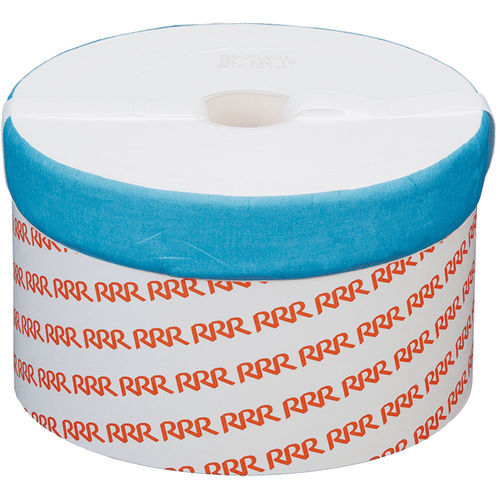

Oil filter cartridge X series

finecellulose fiberfor filters

The original and still the best. Triple R’s continuous investment in research and development delivers the highest standard of efficiency in oil filtration. Protecting your investments while boosting productivity. Our filter elements are designed to cleanse industrial oils, removing everything from solid particles to water to sludge, varnish and oxidation residues. 3 in 1, all within a single element - a Triple R unique, unmatched by any filter manufacturer worldwide. TIP: use Triple R to analyse your systems condition. When opening the lid of our Triple R filter housings, you can see on top of the filter element. The appearance of the filter element and the type of contaminants present on the top allow to draw conclusions about your systems condition. The filter design forces the oil to flow through 114mm of engineered filter media and creates 3 distinct stages of filtration. The lower part is compressed by a carton box, creating an even finer filter medium. Big particles stay on top of the element. Smaller particles are captured in the upper non-compressed part. The smallest particles are captured in the lower compressed part As big particles are retained on top, the filter becomes an excellent diagnostic tool. The cellulose filter media absorbs water drops and consequently dries the oil to less than 100 ppm. The industry thickest filter, 114mm to flow trough, combined with Triple R's filter media, results in the unique ability for absorbing and removing oil oxidation residues, well known as sludge, or varnish deposits.
