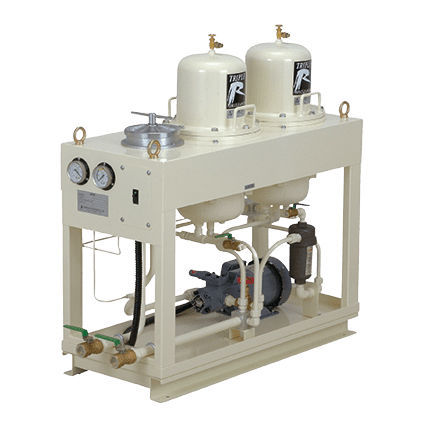

Oil filter OSCA series
multi-basketwashableoff-line

oil filter
oil filter
oil filter
oil filter
oil filter
oil filter
oil filter
oil filter
oil filter
oil filter
Add to favorites
Compare this product


Characteristics

Designed for
oil
Filtration element
multi-basket
Cleaning
washable
Other characteristics
off-line, large, bypass
Flow

Max.: 100 l/min
(26.417 us gal/min)

Min.: 8 l/min
(2.113 us gal/min)

Description

Off-line bypass oil cleaners for high flow rates and for large tank volumes. Based on the SS-series filter housings. Ideal for: Maintenance service activities. Very large oil volumes up to 50.000 litres. High viscosity oil. Effectively removes all the particles that are usually very difficult to remove with conventional filters and performs a total cleaning of the oil by removing solid particles, absorbing water and eliminating sludge and other oil oxidation residues. All systems are fully equipped and come with a washable metal suction filter, control gauges, a control panel with on/off switch and a drain tap. Standard units have a flow range from 6 lit/min up to >60 lit/min, and can be suitable for very large oil volumes (>50.000 litres). Optional equipment: timer, automatic drain function, Quicktoron air removal. Typical applications Large volume systems. Lube systems and high viscosity systems. Perfect for service flushing and for cleaning fresh oil when (re-)filling a hydraulic system. Hydraulic testing lines. Heavy industrial press. Triple R Europe introduces the new OSCA-EXCEL Mobile Filter Rigs with built-in contamination monitoring The Osca-Excel series has following features: Built-in particle monitor = MEASURE ON-THE-SPOT = NO GUESSING anymore - NO WAITING for oil analysis lab reports! This is an important advantage because now maintenance technicians can check about the contamination level on-the-spot, and act accordingly.

Catalogs
