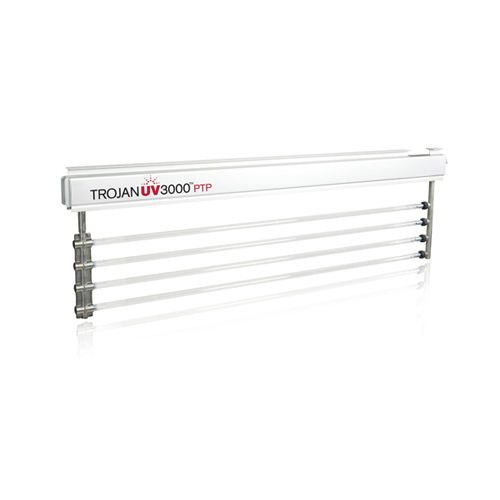

UV disinfection unit UV3000PTP

water

Simple and Reliable Wastewater Treatment The TrojanUV3000®PTP (Packaged Treatment Plant) is ideally suited to treat flows up to 3 MGD (473 m3/hr). It is pre-engineered for quick, economical installation and is designed with proven components to provide a dependable UV solution for small wastewater treatment applications. Flexible Installation Options The TrojanUV3000PTP can be installed into existing chlorine contact tanks and effluent channels. It comes pre-tested, pre-assembled and pre-wired to minimize installation costs, and can also be equipped with prefabricated stainless-steel channels with built-in weirs. Channels are easily integrated with existing flanged piping using transition boxes. Compact Modules Space-saving electronic lamp drivers are housed right in the modules, not in separate external cabinets – this minimizes the footprint of the UV system and eliminates the need for air-conditioning. Lamp drivers are cooled by convection and each UV module includes a UV lamp status indicator for at-a-glance monitoring. Operator-friendly Maintenance Modules are lightweight and can be individually removed for periodic sleeve cleaning and lamp change-outs. An optional mobile cleaning rack simplifies maintenance procedures. Proven Performance, Components and Design The TrojanUV3000PTP has been validated through third-party bioassay testing. Through this testing, performance data has been generated for UV dose delivery to disinfect pathogens Escherichia coli (E. coli ) and fecal coliform.
