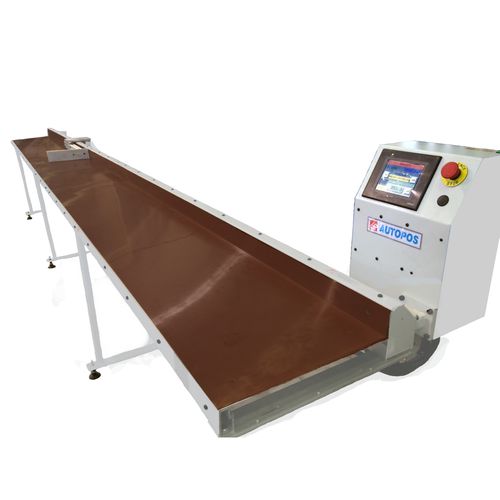

Automatic positioning system AUTOPOS series

single-axisbarcodefor cutting machine

PUSHER AUTOPOS automatic feeding system integratd with our models of single blade cutting machines (TL) Available in dimensions 3,4,6 and 8 meters •Cutting list with memory of 20 lines •x20 PVC coated rollers •Diameter of the rollers 40x300 mm •Maximum load on the rollers 70 kg/m •Fast movement of the AUTOPOS 18 m/min •Slow movement of the AUTOPOS 0,6 m/min •Positioning accuracy 0,1 mm •Screen precision resolution 0,1 mm •Motor 0,16 Hp •Steel legs •PERTINAX SURFACE •GRIPPER PACKAGING AND DIMENSIONS: •PUSHER AUTOPOS-3 : 3630 x 780 x 550 mm (80 Kg) •PUSHER AUTOPOS-4 : 4650 x 780 x 550 mm (110 Kg) •PUSHER AUTOPOS-6 : 6650 x 780 x 550 mm (130 Kg) •Wooden crate
