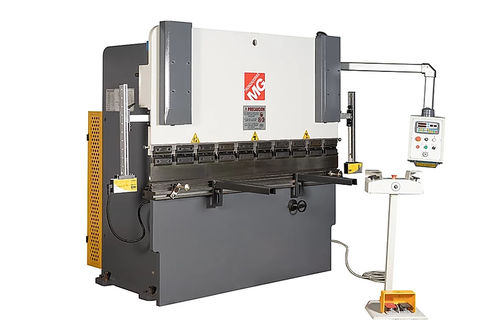

Hydraulic press brake WC67Y 160/3200

horizontal

- Steel structure to give rigidity and stability, consolidated with special treatment against vibrations and temperature changes. - Anti-torsion bar. - Integrated hydraulic transmission system, equipped with several tanks. - Electrically adjustable rear stop with fine adjustment and digital display. - Mechanical adjustment of the tranche independently of the cylinder to allow the superior closing. - System of descending work of fixed table and mobile upper trancha. - Motorized penetration stop with Numeric Control that controls the 2 preselector stops of the rear stop and the vertical penetration stop with 99 programs and 20 cycles in each program. - Top with sliding fingers on high precision skates. - Bimanual control, with emergency stop. - Gooseneck on all models. OPTIONS: *AKAS - SECURITY SYSTEM * DEPENDING ON STOCK, THE MACHINE CAN BE IN BLUE OR GRAY COLORS PACKAGING AND DIMENSIONS: 3300x1540x2460 mm (8900 Kg) Standard packaging Folding force160 Tn Folding length3200 mm Distance between studs2550 mm Swan neck320 mm Carrera150 mm Descent speed80 mm / sec Working speed9.5 mm / sec Speed return60 mm / sec Distance table top400 mm / sec Motor15.00 Hp
