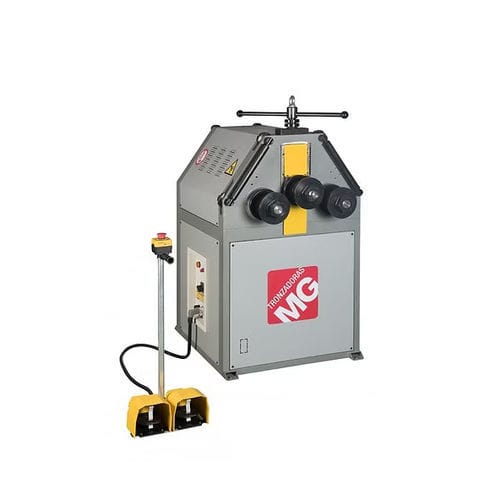

Electromechanical bending machine C-3/50

profile2 drive rollershorizontal

Electro-mechanical bending machine with two driving axes for the bending of iron profiles. CE standards. - 2 drive rollers. - Body of the machine in steel. - Axes in high-strength steel, hardened and rectified, operating on two conical and opposite bearings. - Lateral correctors for material support and correction through sextavado spindles. - Motor-reducer with cast iron body. - Horizontal and vertical work position. - Millimeter and decimal reading for regulating the tightening roller. - Standard rollers. - Service key - Instruction book. OPTIONS: PACKAGING AND DIMENSIONS: 930x905x1418 mm (180 Kg) ​Diameter of the bending axes 50 mm Diameter max. Central roller 100 to 150 mm Motor 1.0 / 1.5 Hp Engine speed 1500/3000 rpm Rotations per minute 10/20 rpm Diameter min. of curvature 500 mm
