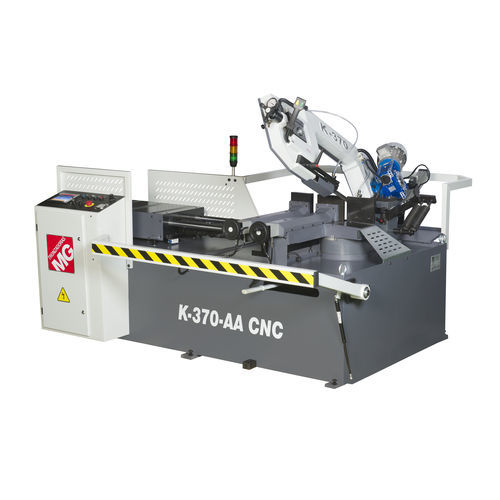

Band saw K-370-AA CNC

for metalsprofilefor tubes

Band saw specially designed to cut tubes, profiles and sections of all types of ferrous materials and light alloys, with automatic bar feeding and automatic or manual cutting execution. Features: - Hydraulic oil and bimetal blade included. - Solid and robust construction with oversized frame. - Arc movement by hydraulic unit with skip-stop valve with advance regulator at control panel - Advance feeder with hydraulic unit and ball screw with built-in advance regulator. - Guided belt with bearings and hard metal plates. - Hydraulic tightening of the jaws. - 2 Cutting speeds 40-80 mt / m. . - Automatic elevation of the arch at the end of the cut with adjustable limit switch. - Working height 820 mm. - Emergency stop. - CE safety regulations. Dimensions of the belt 3150x27x0,9 mm Motor 1.5 / 1.9 HP Cutting Speeds 40 - 80 mt/min Working height 820 mm Cutting oil pump 0,16 HP Noise Level 70 dB feeder tracking force 1000 Kg Servodrive + ballscrew feeder length 700 mm Round cutting capacity 90º 260 mm Rectangular cutting capacity 90º 370X200 mm Square cutting capacity 90º 220X220 mm Round cutting capacity 45º right 250 mm Rectangular cutting capacity 45º right 250x200 mm Square cutting capacity 45º right 200x200 mm Round cutting capacity 60º right 150 mm Rectangular cutting capacity 60º right 150 x130 mm Square cutting capacity 60º right 130x130 mm
