Pneumatic press P-3000 G
punchingfor aluminumfor profiles

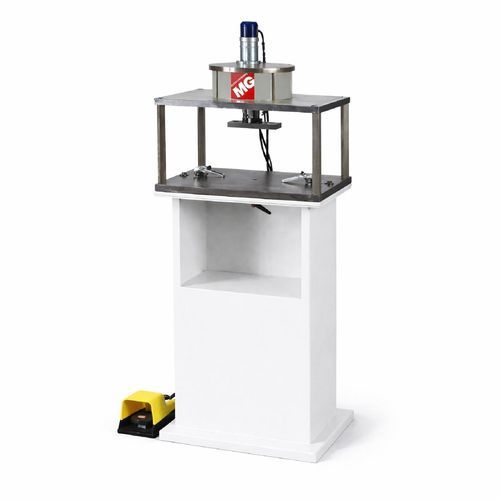

Pneumatic press - P-3000 G - TRONZADORAS MG - punching / for aluminum / for profiles

Add to favorites

Compare this product

Go to the TRONZADORAS MG website for more information

Characteristics

Operation

pneumatic

Function

punching

Applications

for aluminum, for profiles

Opening

Min.: 0 mm
(0 in)

Max.: 35 mm
(1 in)

Description

P-3000 G 3 Tn pneumatic press for Aluminum profiles Pneumatic press ideally produced to perform punching on aluminium profiles and focused on windows and doors openings on the profile for the hardware to assemble the windows. •Pneumatic press with steel structure •Working force 3000 kgs at 8 atm. •USEFUL LIGHT 260 mm •WORKING COURSE 0-35 mm •PACKING SIZE 530 x 340 mm •PIN SPEED 23 mm/seg •AVERAGE AIR CONSUM PER CYCLE 25 l •DESK SIZE 530x340 mm •FREE HEIGHT 260 mm •ADJUSTABLE TRAVERSAL COURSE FROM 0 TO 35 mm •WEIGHT 90 kg •DIAMETER OF THE CYLINDER 45 mm •Pneumatic circuit discharge valve. •Filter group with pressuremanometer •Matrix grips on table OPTIONS: •Turning stand PACKAGING AND DIMENSIONS: •600 x 490 x 600 (86 Kg) •Wooden crate
