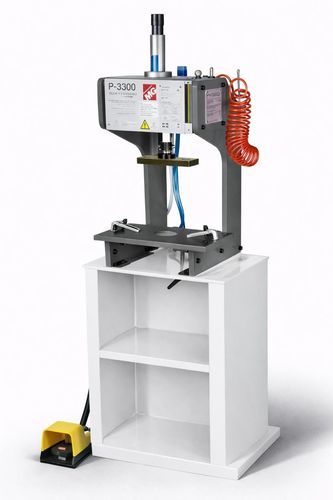

Pneumatic press P-3300G
punchingfor aluminumfor profiles

Pneumatic press - P-3300G - TRONZADORAS MG - punching / for aluminum / for profiles
Pneumatic press - P-3300G - TRONZADORAS MG - punching / for aluminum / for profiles
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Function
punching
Applications
for aluminum, for profiles
Force

32.4 kN

Opening

Max.: 80 mm
(3 in)

Min.: 20 mm
(1 in)

Description

P-3300 G 3,3 Tn pneumatic punching machine for aluminum profiles Pneumatic press ideally produced to perform punching on aluminium profiles and focused on windows and doors openings on the profile for the hardware to assemble the windows. •Pneumatic press with steel structure •Working force 3300 kgs at 8 atm. •Pneumatic cylinder with pneumatic working course 20-80 mm. •Speed of 35mm/seg. •AVERAGE AIR CONSUM PRO CYCLE 35 litros •DESK SIZE 375X230 mm •DIAMETER OF THE CYLINDER 45 mm •Pneumatic circuit discharge valve. •Filter group with pressuremanometer •Matrix grips on table OPTIONS: •Turning stand PACKAGING AND DIMENSIONS: •500 x 500 x 830 (90 Kg) •Wooden crate
