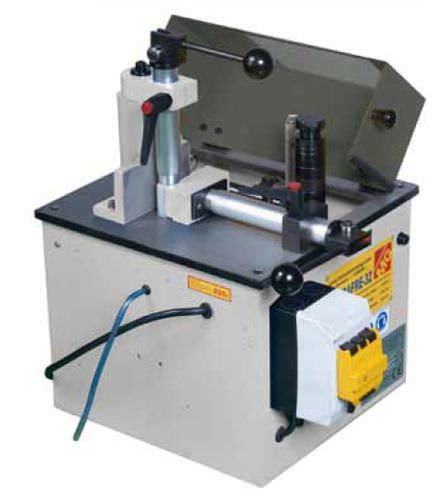

Fixed-angle end milling machine MINIRAFRE-M

MINI RAFRE-M Aluminium/PVC corner milling machine Manual machine for the grooving of any kind of aluminium carpentry, heads machining, hinges and lock housing, shutters, etc. •Milling Blade 120 mm diam •2,75 HP Motor •3000 rpm •27 mm motor shaft axis diameter •32 mm interior milling blade •120 mm maximum drilling tool diameter •200 mm course movement •1x manual clamping •Adjustable backfence to increase milling capacity •Manual Lubrification •Base •410 X 400 X 330 (48 Kg) •Wooden crate
