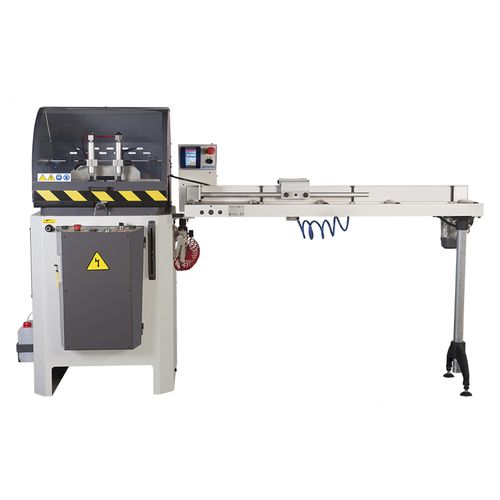

Driven roller conveyor AUTOPOS series

horizontalfor sawspositioning

•Cutting list with memory of 20 lines •x20 PVC coated rollers •Diameter of the rollers 40x300 mm •Maximum load on the rollers 70 kg/m •Fast movement of the AUTOPOS 18 m/min •Slow movement of the AUTOPOS 0,6 m/min •Positioning accuracy 0,1 mm •Screen precision resolution 0,1 mm •Motor 0,16 Hp •Steel legs •AUTOPOS-3 : 3630 x 780 x 550 mm (80 Kg) •AUTOPOS-4 : 4650 x 780 x 550 mm (110 Kg) •AUTOPOS-6 : 6650 x 780 x 550 mm (130 Kg) •Wooden crate
