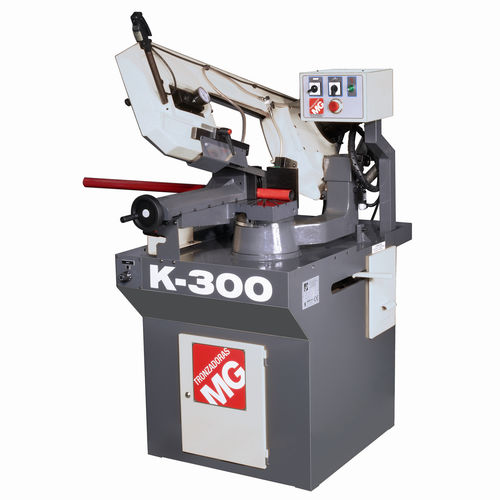

Band saw K-300/2-M BH

for steelsemi-automaticwith cooling system

Semiautomatic bandsaw machine with arch controlled movement Robust belt-saw to cut iron and steel with a base of welded plates and aluminium saw arm. Hydraulic Cylinder that controls the arm. Openning and Closure of the clamping device are manual operated Caracteristics: •- CE Norms Appliance •- Cooling system •- 2 Cutting Speeds •- Manual tensioning band with manometer •- Band guiding by means of carbide plates and Bearings •- Clamping device max. Openning : 310mm •- Cutting angle to 60º OPTIONS: PACKAGING & DIMENSIONS: •1400X750X1450 mm (340 Kg) •Wooden crate Belt dimensions 2750x27x0,9 mm Motor 0.5 / 1.2 HP Cuttting speeds 35/70 mt/min Working height 990 mm Coolant pump 0,16 Hp Sound level 70 db
