Band saw HU-440/600-SA
for steelsemi-automaticwith cooling system

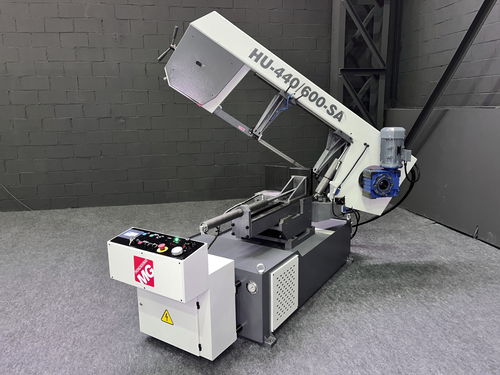

Band saw - HU-440/600-SA  - TRONZADORAS MG - for steel / semi-automatic / with cooling system
Band saw - HU-440/600-SA  - TRONZADORAS MG - for steel / semi-automatic / with cooling system
Band saw - HU-440/600-SA  - TRONZADORAS MG - for steel / semi-automatic / with cooling system - image - 2
Band saw - HU-440/600-SA  - TRONZADORAS MG - for steel / semi-automatic / with cooling system - image - 3
Band saw - HU-440/600-SA  - TRONZADORAS MG - for steel / semi-automatic / with cooling system - image - 4
Add to favorites
Compare this product


Characteristics

Technology
band
Treated material
for steel
Operational mode
semi-automatic
Other characteristics
with cooling system, hydraulic, CE, electro-hydraulic, large format, high-capacity
Round piece diameter

210 mm, 310 mm, 430 mm, 445 mm
(8 in, 12 in, 17 in, 18 in)

Description

•Large capacity belt saw. Made with the highest strength and reliability. Exact cutting by means of hard metal guides, right and left cutting until 60º, degrees digital display and refrigeration by air-oil microspraying. •- CE rules. •- Microsprayed refrigeration unit. •- Electronic speed variator 26/86 •- Tension and belt breaking control. •- Cutting pressure adjustment. •- 0,5kw hydraulic motor with capacity until 13 litres OPTIONAL EQUIPMENT: •Hydraulic / Manual vertical Clamp. •Roller-Tracking for heavy loaded material. •Manual, digital and Self-positionning Roller-Tracking with measurement Systems. •Cutting lase Light. PACKAGING & DIMENSIONS: •2700x900x1420 mm (1100 Kg) •Wooden palet Belt dimensions 5200x34x1,1 mm Motor 4.0 HP Cutting speeds 26/86 mt/min Working height 760 mm Mist Lubrification Lubetools Sound level 70 db
