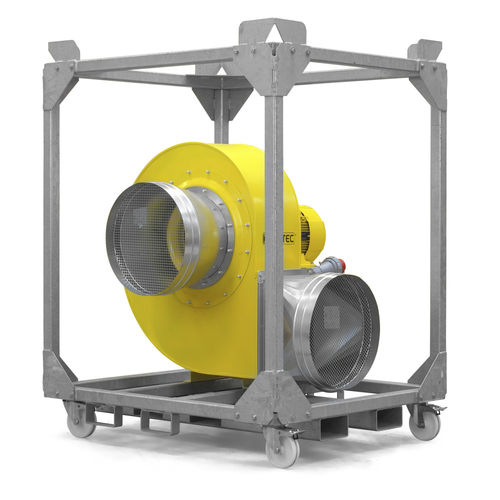

Centrifugal fan TFV 600

ventilation

The room ventilation conducts substances such as varnish vapors and paint, as well as several harmful fumes, nitrogen oxide, carbon monoxide and dust particles. The high pressure centrifugal in this product series is equipped for various tasks and is able to transport an impressive 16,000 m3/h volume of air, even over long distances and with back pressure. In addition to this, the extremely robust construction makes the device able to handle harsh working environments at the same time. The fan can suck the air in axially and blow it out radially at the same time, making it impervious to highly polluted air, as well as high levels of dust. There are several benefits that you can notice in practice, including extremely robust models and very high flow rates. Benefits in practice: Extremely robust models with a high flow rate Splash proof type A (IP55) Deployment also possible in very dusty rooms Fan motor situated away from the main air flow Can be connected to suction as well as distribution ducts Stable characteristic curves and constantly high pressure Technical data TFV 600: Free discharge air volume: 16,000 m³/h Air discharge speed: 21 m/s (75.6 km/h) Fan stages: 1 Air pressure max.: 4,900 Pa Max. transport medium temperature: 80 °C Surrounding conditions: -20 °C to 40 °C Input voltage: 400 V / 50 Hz (8.6 A) Requisite protection: CEE 63 A Nominal current consumptions: 63 A Electrical connection / connector type: CEE 63 A Power input: 18,5 kW Intake duct: accesories (ø 515 mm) Outlet duct: standard (ø 515 mm) Sound level (distance 1.5 m): 84 dB (A)
