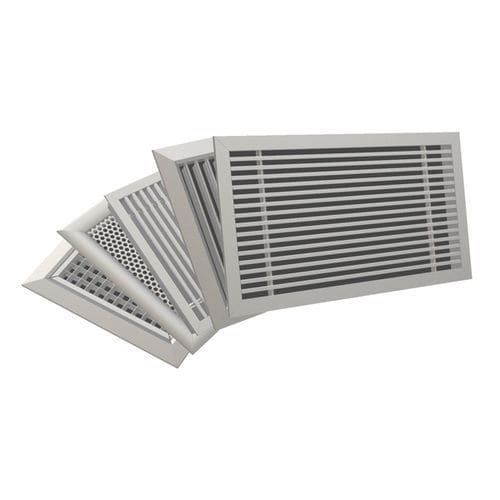

Aluminum ventilation grill X-GRILLE MODULAR

mesh

Individual design and simple configuration with more than 3000 variants Various designs allow installation from representative areas to warehouses Quick and simple installation under normal structural conditions through 6 mounting variants Air diffuser for supply and extract air with extensive dimensional variance Mesh band installation possible through special end and middle sections Can be combined with familiar TROX attachments Simple replacement of existing TROX ventilation grilles due to identical dimensions of the installation openings Design programme for technical sizing Data sets for BIM-based project processing Ventilation grilles are air terminal devices for the supply air and extract air of ventilation and air conditioning systems. They guide the supply air into the room. Ventilation grilles with adjustable blades allow for adapting the discharge direction to the local conditions. The result is a mixed flow ventilation in comfort zones and industrial zones, with good overall room ventilation. Induction slows the airflow down, i.e. the airflow velocity decreases as the distance from the grille increases. The distance at which the airflow velocity has reached a certain value (for example 0.2 m/s) is called the throw distance. The supply air jet from wall grilles arranged close to the ceiling reaches a greater throw distance than a comparable free jet (without ceiling influence) due to the ceiling influence. Single grilles, groups of grilles and continuous horizontal runs all achieve various throw distances.
