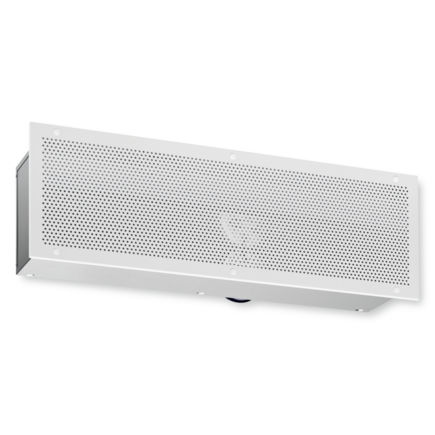

Rectangular air diffuser QLW-AZ wall-mountedinduction
Add to favorites
Compare this product
Characteristics
- Configuration
- rectangular
- Mounting
- wall-mounted
- Other characteristics
- induction
- Air flow
Max.: 162 m³/h
(5,720.976 ft³/h)Min.: 43 m³/h
(1,518.531 ft³/h)
Description
SUPPLY AND EXTRACT AIR COMBINATION FOR INSTALLATION INTO WALLS AND BULKHEADS, ONE-WAY AIR DISCHARGE, FOR COMFORT ZONES
Displacement flow diffusers with supply and extract air functions combined in one casing
Nominal lengths 600 – 1200 mm
Volume flow rate range 12 – 45 l/s or 43 – 162 m³/h
Variant with cross-talk attenuator ensures very good transmission loss
Perforated plate, square pitch
Circular duct connections
Horizontal duct connection
Optional equipment and accessories
Exposed surface in RAL CLASSIC colours
Damper blade for volume flow rate balancing
Cross-talk attenuator
Fixing brackets
