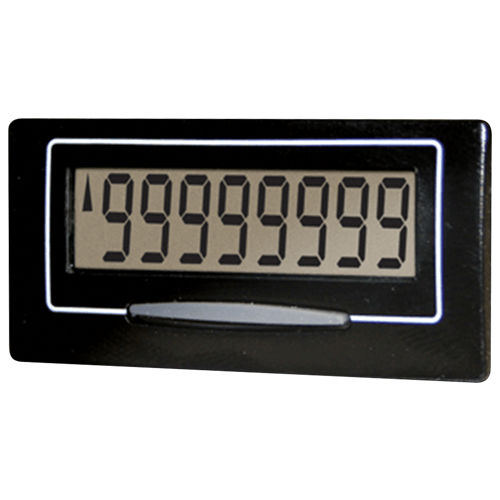

Pulse totalizer counter 7111

screwdigitalelectronic

The 7111/7111HV counter is a compact, self-powered counter with bi-directional counting and screw terminals to ensure fast wiring. Other features include optional backlight, decimal point selection and count direction indication. The 7111 is a dry contact input counter and the 7111HV is a wide ranging voltage counter. Specifications Counter Type - Totalizing Counter Certifications - CE, cUL, NEMA 4 & 12, UKCA, UL Digits - 8 Digits Reset Option - Manual Reset, Remote Reset Power Type - Battery Powered Input - 10 – 110V DC, 10 – 240V AC, Dry Contact Switch Housings - 1/32nd DIN
