Pulse counter 7922

batchdigitalelectronic

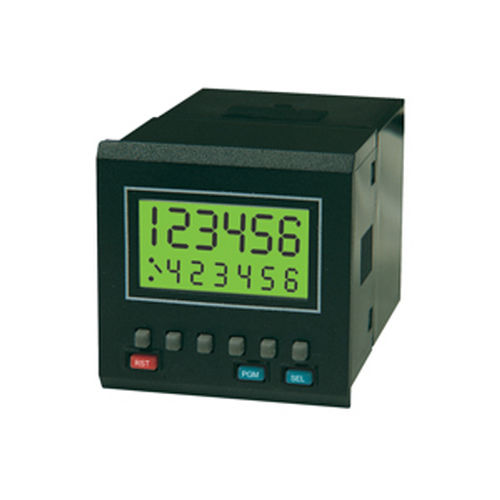

The 7922/7932 is a programmable preset counter with prescaler, quadrature input and EEPROM data storage. Housed in an IP65 sealed DIN case, this versatile counter can be configured for quadrature or uni-directional inputs, dual preset or single preset with batch preset. The 7922/7932 display is a supertwist high visibility backlit LCD that can be viewed from any angle. All programming, reset and presetting can be carried out from the counter’s front panel and when powered from an AC supply, there is a 12VDC output to drive a sensor. Specifications Counter Type - Totalizing Counter Certifications - CE, cUL, UL Digits - 6 Digits Reset Option - Automatic Reset, Manual Reset, Remote Reset Input - 12-260V AC/DC, NPN, PNP Supply Voltage - 10 – 26V DC, 85 – 265V AC Power Type - Electronic
