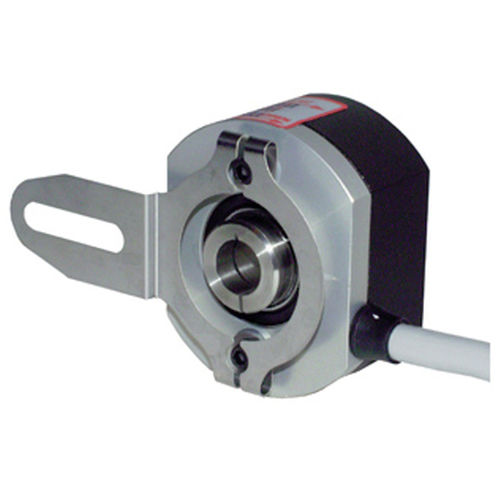

Incremental rotary encoder 4T26015TPP seriesmechanicalhollow-shaftIP54
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- mechanical
- Construction
- hollow-shaft
- Protection level
- IP54, IP54
- Other characteristics
- compact
- Housing diameter
30 mm
(1.18 in)- Shaft diameter
10 mm
(0.39 in)- Output frequency
300 kHz
- Process temperature
Max.: 100 °C
(212 °F)Min.: 0 °C
(32 °F)
Description
300Khz Electronic Incremental Encoder
The 4T260 electronic incremental encoder has an integral bearing set for stable and consistent operation without concerns for axial or radial shaft runout. Features include a quadrature output and anti-rotation flex mount arm.
Specifications
Input -
5 – 24V DC
Certifications -
IP54
Current Consumption -
80mA typical
Max Shaft Speed -
7,500 RPM continuous
Shaft -
10mm hollow through shaft
Output Circuits -
A, B @ 20mA each
Frequency Response -
300 KHz
Operating Temperature -
0°C – 100°C
