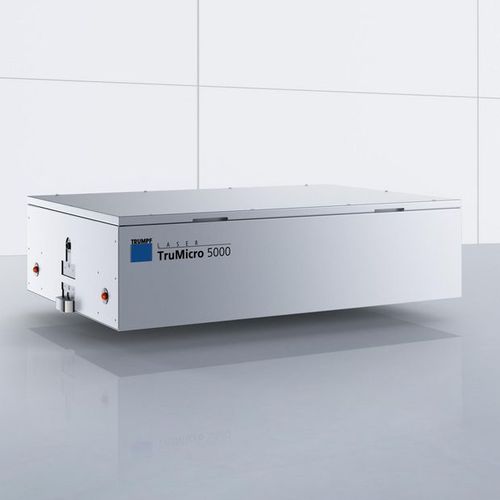

Short-pulse laser TruMicro 5000 series
femtosecondpicosecondsolid-state

Short-pulse laser - TruMicro 5000 series  - TRUMPF lasers - femtosecond / picosecond / solid-state
Short-pulse laser - TruMicro 5000 series  - TRUMPF lasers - femtosecond / picosecond / solid-state
Add to favorites
Compare this product


Characteristics

Operational mode
femtosecond, short-pulse, picosecond
Technology
solid-state
Spectrum
infrared
Applications
industrial, cutting, for materials processing, drilling, for the glass industry
Other characteristics
compact, precision, high-speed, cold
Power

Min.: 15 W

Max.: 150 W

Wavelength

343 nm, 515 nm, 1,030 nm

Description

The short and ultrashort pulse lasers from TRUMPF enable microprocessing with an optimal combination of quality, productivity, and profitability, with no limits in terms of industrial suitability. The particular pulse and power stability is achieved through the separation of pulse generation and pulse output. The patented control ensures monitoring of each individual pulse, and keeps the power and pulse energy at exactly the right level required for the application. The picosecond and femtosecond lasers of the TruMicro Series 5000 impress with their extremely short pulses and high pulse energy of up to 500 μJ. All of this together with excellent beam quality and high average powers of up to 150 W. This ensures maximum productivity in micro-materials processing. They vaporize virtually every material so quickly that heat influence cannot be detected. They are therefore, ideal for processing semiconductor materials, metals, dielectrics, plastics, and glasses. The ultrafast power modulator keeps power and pulse energy at an exact level. TruMicro lasers can be integrated easily and are compatible with all common interfaces. The lasers, which are based on the successful TruMicro Series 5000, are designed for your everyday production tasks. Process temperature-sensitive materials without significant heat input. 100% of the average power even in individual pulses as a result of regenerative disk technology

Catalogs

No catalogs are available for this product.

See all of TRUMPF lasers‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
