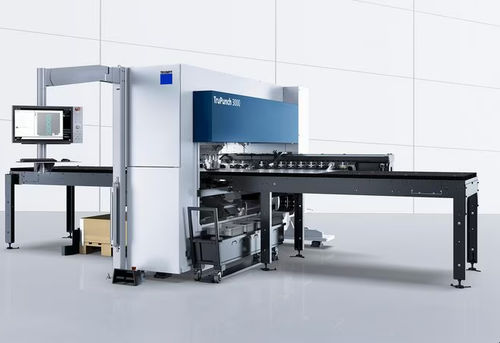

CNC punching machine TruPunch 3000 series
electricformingengraving

CNC punching machine
CNC punching machine
CNC punching machine
CNC punching machine
CNC punching machine
CNC punching machine
CNC punching machine
Add to favorites
Compare this product


Characteristics

Control
CNC
Drive type
electric
Associated function
forming, engraving, marking, tapping
Other characteristics
universal
Pressing force

180 kN

X travel

2,500 mm, 3,000 mm
(98.43 in, 118.11 in)

Y travel

1,250 mm, 1,550 mm
(49.21 in, 61.02 in)

Plate thickness

6 mm
(0.24 in)

Part weight

150 kg, 230 kg
(330.69 lb, 507.06 lb)

Tool change time

0.5 s

Description

Resource-efficient universal machine With its skeleton-free processing, the TruPunch 3000 saves material. Its well thought-out automation provides you with the utmost convenience. Thanks to the electric punching head, you can punch with an average power input of only 5.6 kW. Excellent energy efficiency With its electric punching head and an average power input of 5.6 kW, it is very energy efficient. Gentle processing Thanks to the descending die, sheets of up to 6.4 mm can be processed to a high quality and with minimal scratching. Increased productivity thanks to automation The SheetMaster loads and unloads your punching machine and can optionally be equipped with an integrated tool magazine. Intelligent part sorting The SortMaster Box Linear sorts small parts that fall through the part removal flap into up to four boxes. Versatile tools At TRUMPF you get top quality punching tools for creating threads or bends in your parts, for example. Economical and safe Skeleton-free processing saves material and increases process safety.

VIDEO
