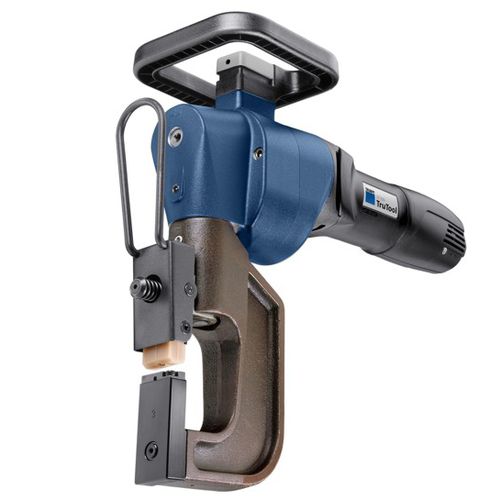

Pipe crimping machine TruTool TF 350

profilesemi-automaticportable

Joining is the simplest and most cost-effective way of connecting two or more metal parts. With the TruTool TF 350 you can produce a form-fitting material connection with joints that are easy to reproduce using cold forming. Whether the workpieces are coated or uncoated is irrelevant. The TruTool TF 350 joins overall material thicknesses of 0.8 mm to max. 4 mm. The result is a long-lasting connection in one operation, without additional connecting elements. Straight to the point The connection point is secure and resilient and the joining points are resistant to corrosion. No fasteners No screws or rivets are used, which saves costs and simplifies handling Perfect surface in one operation The joining quality does not depend on whether surfaces are coated or uncoated. 120 joining points per minute Simple single stroke activation with consistent strength and connection quality. For upwards joining direction For the upper tool, you have the choice between a tilting arm for the die or a fixed die arm. For the lower tool, choose the fixed punch arm. The die arm and die are determined by the material type and thickness. For joining points at the bottom For the upper tool, you have the choice between a fixed punch arm or a tilting arm for the punch. For the lower tool, choose the fixed die arm. The die arm and die are determined by the material type and thickness.
