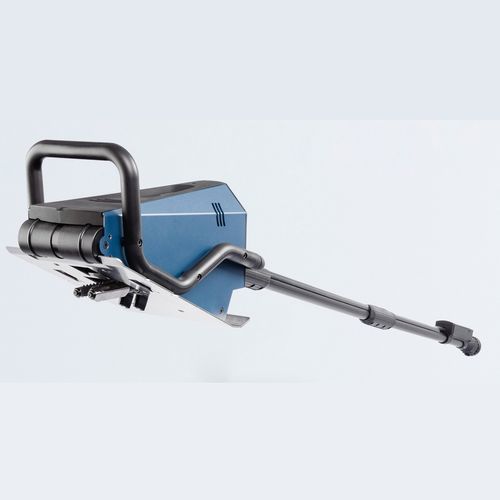

Roller cleaning machine TruTool TSC 200

manualprocesscompact

The compact and robust TruTool TSC 200 is designed for fiber lasers with high laser power and correspondingly hard slag up to 25 mm. This is independent of the material. Several factors are decisive for the high cleaning quality and performance. For example, the geometry of the cleaning tool and the feed support. In addition, the balanced weight distribution of the housing and motor ensures smooth and ergonomic operation. The cleaning time for a standard pallet of 1500 mm x 3000 mm with partial loading is approx. 15 minutes. We recommend the optional feed support if you need to clean slag thicknesses > of 15 mm. Ergonomic The cleaning process combined with the machine installation ensures smooth running and noise reduction. Outstanding results Exceptional cleaning quality, regardless of the cut material and slag hardness. Application The TruTool TSC 200 can be used on SSL 2D laser cutting machines > 6000 W Easy to use The roller does not need to be dismantled for cleaning and also reduces the feed force to be applied during cleaning. High part quality Regular cleaning of the slats ensures high-quality components with a high cutting quality. Cost reduction up to 75% The option of multiple cleaning significantly increases the service life of the slats and you can save up to 75% of the costs. Cleaning process The slat is cleaned from bottom to top with a rotating movement. The roughing function breaks up the slag and performs the coarse cleaning. The finishing function is responsible for fine cleaning by scraping off the slag.
