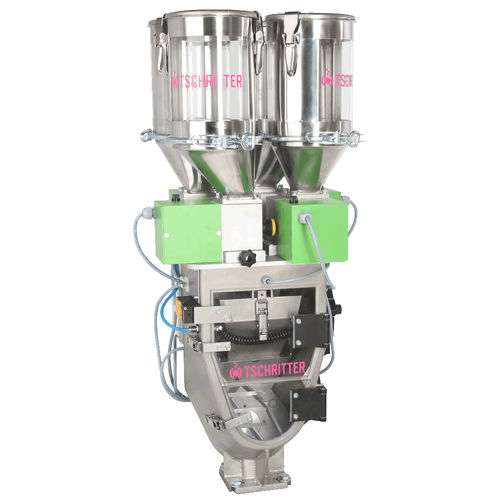

Granules dosing unit Cx 50

gravimetrichopperhigh-precision

Cx-10 - Cx 50 Gravimetric Batch dosing device Gravimetric mixing and dosing system for granules and additives – Dosing, weighing, mixing, controlling in one single device – For exact and homogeneous blends Dosing capacity: Up to 50kg/h 4 components (Optional: 6 components). Equipped with high accurate drum dosin units (WD system) WD1 Cx 50 Batch dosing device The Cx 50 has been designed for throughputs of up to 50 kg/h. The unique compact design saves space and, with its high-precision dosing drum technology and high-resolution weighing system ensures ideal dosing and mixing results. At quantities of 0.1 % to 100 %, metering is by drum dosing devices (WD). Granulates and masterbatches are homogeneously mixed with the turbo mixer right from the first batch. Its design minimises material storage. State-of-the-art microcontroller dosing control filters out impacts and vibrations. Cleaning and refitting the device is quick and easy. SPECIFICATIONS • Up to 50 kg/h • 4 components (granulates, masterbatch) • Batch size 500g • Metering accuracy 0.1 % (*) • Precision weighing cell • Highly accurate dosing drums • 24-bit weighing amplifier • Shock absorber integrated in weighing software • Inclined mixer with 3D mixing motion * depending on bulk density and grain size - TECHNICAL DATA Dosing capacity: up to 50kg/h Accuracy: about 0.1 % for additives (average of 3) Max. no. of dosing stations: 4, equipped with drum dosing devices Weighing hopper: 1000ml Mixer: 6 Liter Housing: Stainless steel 1.4301 / aluminium Electrical connection: 230 V * depending on bulk density and grain size
