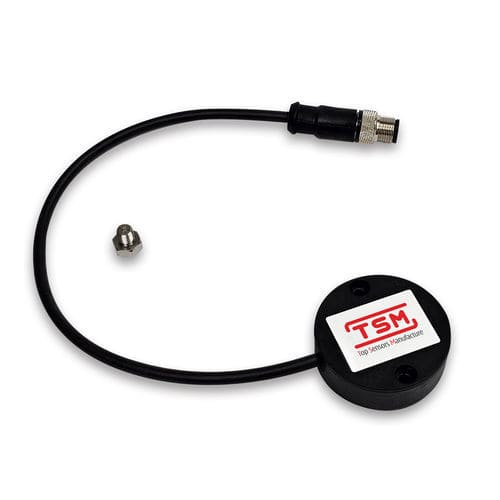

Absolute rotary encoder RTS100

Hall effectsingle-turnCANopen

Absolute single-turn magnetic encoder with integrated inclinometer Description RTS100 is a new generation of multi-variable position sensor by TSM. It has a particularly compact and robust plastic housing that, in a diameter of just 50 mm, encloses the technological heart of the sensor, a system for simultaneous measurement of angle position and inclination based on Hall effect and MEMS components, respectively. The contactless technology makes this sensor a very robust device with expected life practically infinite thanks to the absence of wear on the sensing element. Excellent accuracy, high IP rating, shock and vibration resistance and electromagnetic immunity make this transducer suitable for outdoor mobile hydraulic applications such as: agricultural vehicles, construction equipment, loader cranes, telehandlers and aerial work platforms. Thanks to CANopen safety protocol and SIL2-Pld certification it is recommended for safety relevant applications.
