Flexible conveyor belt WT1500
modularplasticsmooth

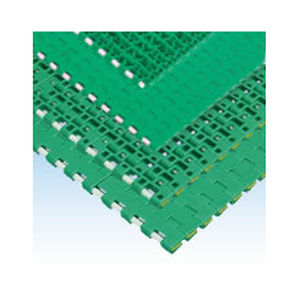

Flexible conveyor belt - WT1500  - Tsubakimoto Chain - modular / plastic / smooth
Flexible conveyor belt - WT1500  - Tsubakimoto Chain - modular / plastic / smooth
Flexible conveyor belt - WT1500  - Tsubakimoto Chain - modular / plastic / smooth - image - 2
Add to favorites
Compare this product


Characteristics

Type
flexible, modular
Material
plastic
Pattern
smooth
Width

Max.: 3,733.8 mm
(147 in)

Min.: 76.2 mm
(3 in)

Thickness

304.8 mm
(12 in)

Description

Compact in-line layout in combination with nose bar WT1500 series Combined with the same series of transformer-over types (TOD-type chains), right-angle layout with no remaining in conveyance material is also available Most popular series for conveying small containers, where tipping or remaining of conveyed material is not desired. Features ・Achieves smooth transfer of conveyed items with little remainings even in in-line and right-angle layouts. By combining with GTO-K, GTO-M, TOD type (transformer-over type) chains in right-angle conveyor, dead plates can be omitted and transfer with less remainings is possible. Refer to the product specifications page of each product for the features of WT1505G-K type with tab guide attachment and WT1505GTO-D type for 90-degrees transfer only. ・With tab guide attachment GTO-K,GTO-M and TOD types with tab guide attachment prevents meandering even at high speeds and realizes stable conveyance even during lateral transfer between conveyors.
