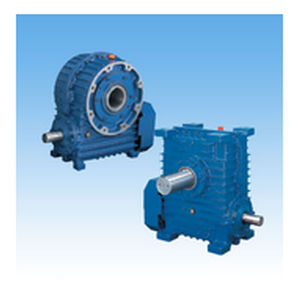

Worm gear reducer TD
cylindricalright anglehollow-shaft

worm gear reducer
worm gear reducer
Add to favorites
Compare this product


Characteristics

Type
worm, cylindrical
Shaft orientation
right angle
Shaft configuration
hollow-shaft
Torque
500 - 1000 Nm, > 10 kNm, 1 - 2 kNm, 2 - 5 kNm, 5 - 10 kNm
Mounting
foot-mounted, flange-mounted
Configuration
compact, flange
Performance
high-performance
Applications
transmission, drive, shaft

Description

Troi Drives are high-performance worms that achieve both high transmission capacity and efficiency byusing a troidal worm gear. Two types of housings are available: a solid output shaft type with foot mounting and a hollow output shaft type with on-shaft and flange mounting. Ensures ultimate compactness and weight saving for all layouts. Features ・Troidal Worm Gears are high performance wormsthat transfer the load with their entire tooth surface. This gives them a higher load transfer capacity and ideal for compact machines. Compared to general-purpose cylindrical worm gears, Tsubaki Troi Drive gears are two sizes smaller. In other words, Tsubaki Troi Drive gear boxes are 1.5 to 2 times higher in torque capacity when compared to others in same sizes. Silent and smooth operation Troi Drives with extremely improved tooth profile accuracy provides quiet and smooth rotation.
