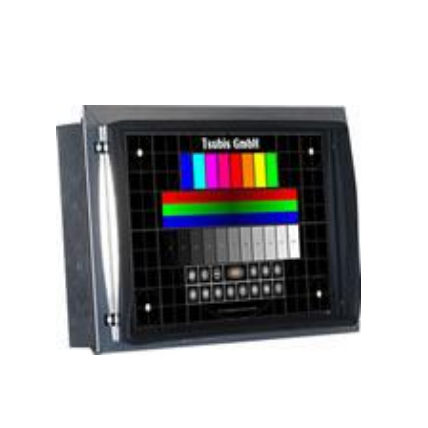

LCD/TFT replacement monitor LCD12-0183 12"800 x 600panel-mount
Add to favorites
Compare this product
Characteristics
- Technology
- LCD/TFT
- Display size
- 12"
- Resolution
- 800 x 600
- Mounting
- panel-mount
- Applications
- industrial
- Other characteristics
- dust-proof
Description
monitor: 14" colour monitor, CC14MSY1-A349, TOI12LB1-A618 / 26S14M35H
control unit: FAGOR SL/861432002, FAGOR 8050
Frequency - 15-45 kHz horizontal, 50 - 75 Hz vertikal
Active area - 216 x 163 mm (BxH)
Input signal Video - 9/15/25 pol. Sub, 5 x BNC
Housing - compatible
Settings - via OSD (On Screen Display)
Input voltage - AC 85-240V
Operating temperature - -10 to 55°C
Manufactured according to - CE industry standard, EN55022, EN55024
