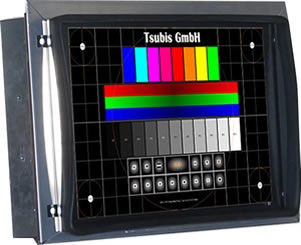

TFT replacement monitor LCD12-0056

12.1"800 x 600panel-mount

control unit: Sodick Control LQ-1, Sodick Control EX-21, Sodick Control MARK 21,Sodick Control MARK20,Sodick Control MAK 25, Sodick Contrpol Mark-Ex, Sodick Control NF2-40, Sodick Mark XI, Sodick A500, Sodick A350, Sodick AP350, Sodick K1CN Specifications: Display Resolution - 12,1" TFT Full Colour active / 800 x 600 Pixel Brightness - 300 cd/m2 Frequency - 15-45 kHz horizontal, 50-75 Hz vertikal Settings - via OSD (On Screen Display) Active area - 249 x 188 mm (B x H x T) Housing - compatible Control - SODICK Steuerungen mit CRT Bildschirm Control LQ-1, EX-21, Mark 21, Mark20, MAK25, Mark-Ex, NF2-40 Input signal - 9 pol. 2 reih. D-SUB socket Input voltage - AC 85-240 V Operating temperature - -10°C to 55°C Betriebstemperatur Manufactured according to - CE industry standard, EN55022, EN55024
