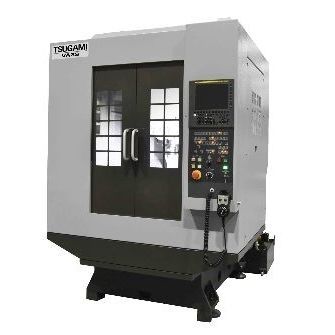

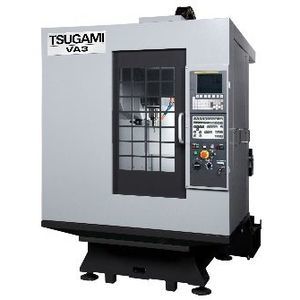

Vertical CNC machining center V series3-axisBT 30BBT30
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 30, BBT30
- Number of tool stations
- 20 tools, 21 tools
- Applications
- for large workpieces
- Other characteristics
- high-speed
- X travel
500 mm, 700 mm
(19.69 in, 27.56 in)- Y travel
400 mm, 450 mm
(15.75 in, 17.72 in)- Z travel
350 mm
(13.78 in)- Rotational speed
8,000 rpm, 10,000 rpm, 15,000 rpm, 20,000 rpm
(50,265 rad.min-1, 62,832 rad.min-1, 94,248 rad.min-1, 125,664 rad.min-1)- Power
3.7 kW, 9 kW, 13 kW
(5.03 hp, 12.24 hp, 17.68 hp)- Weight
2,600 kg, 3,200 kg
(5,732.02 lb, 7,054.79 lb)- Overall length
2,105 mm, 2,205 mm
(82.9 in, 86.8 in)- Overall width
1,500 mm, 1,900 mm
(59.1 in, 74.8 in)- Overall height
2,373 mm, 2,385 mm
(93.4 in, 93.9 in)
Description
●The spindle is separated from the ATC arm and the tool magazine, so the tooling is easy regardless of magazine interference.
●The tool can be inserted directly into the spindle or removed from the spindle manually from the front of the machine.
