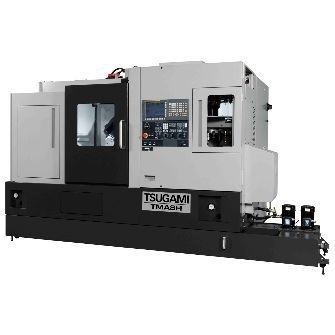

CNC turning center TMA8J3-axishigh-precisionhigh-performance
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Performance
- high-precision, high-performance, high-speed, powerful
- Other characteristics
- Y-axis
- Associated function
- milling
- Diameter
65 mm, 220 mm
(2.56 in, 8.66 in)- Spindle speed
4,000 rpm, 5,000 rpm, 15,000 rpm, 20,000 rpm
(25,132.741 rad.min-1, 31,415.927 rad.min-1, 94,247.78 rad.min-1, 125,663.706 rad.min-1)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
40,000 mm/min
(26 in/s)- Nominal power
5.5 kW, 11 kW, 15 kW
(7.5 hp, 15 hp, 20.4 hp)- Overall lenght
2,126 mm
(84 in)- Overall width
3,600 mm
(142 in)- Overall height
2,250 mm
(89 in)- Weight
8,500 kg
(18,739 lb)
Description
Complete machining performed by single machine
●Tool spindle with standard Y-axis control and B-axis indexing.
●Crossed at right angle slide construction assures high accuracy complex machining and free-chip-flow.
●Back work spindle (standard) achieves 6-face machining.
●Ideal machine for wide variety products in small quantities of complicatedshape parts.
●By process integration, reduces the number of operators and machines, and shortens the lead time.
