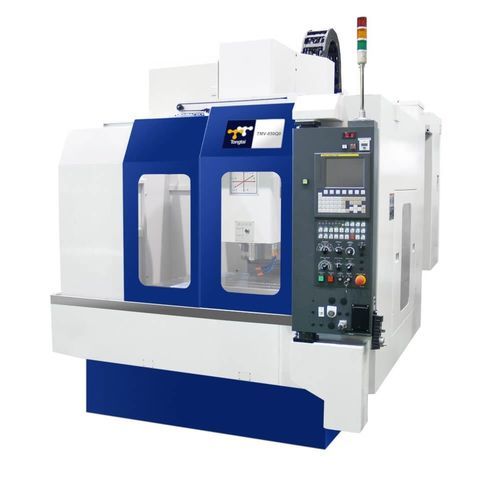

3-axis CNC machining center TMV-QII series verticalBT 40HSK A-63
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40, HSK A-63, BBT40
- Number of tool stations
- 24 tools, 30 tools, 48 tools
- Other characteristics
- direct-drive
- X travel
850 mm, 1,050 mm
(33.46 in, 41.34 in)- Y travel
600 mm
(23.62 in)- Z travel
530 mm
(20.87 in)- Rotational speed
8,000 rpm, 10,000 rpm, 15,000 rpm
(50,265 rad.min-1, 62,832 rad.min-1, 94,248 rad.min-1)- Power
Min.: 5.5 kW
(7.48 hp)Max.: 15 kW
(20.39 hp)- Work feed X-axis
48 m/min
- Work feed Y-axis
48 m/min
- Work feed Z-axis
48 m/min
- Table load capacity
800 kg
(1,764 lb)
